The Windows Client Authenticator (WCA) allows Windows and IIS users to validate their identity to the Maverics Orchestrator using Windows desktop credentials. WCA runs as an IIS application that authenticates users via NTLM and communicates the result to the Orchestrator over HTTPS. WCA must be used with the Orchestrator — it has no standalone value. The WCA installer is downloaded from your Maverics deployment.
Console terminology: In the Maverics Console, this section is called Identity Fabric. The YAML configuration uses the connectors key to define identity provider integrations.

​
Overview

The Windows Client Authenticator connector (type: windowsclientauthenticator) authenticates users via their Windows desktop credentials using NTLM. Unlike OIDC or SAML connectors, WCA does not use a standard federation protocol — it runs as a dedicated IIS application on a Windows server and communicates directly with the Orchestrator over HTTPS. WCA only supports login functionality. It does not retrieve user attributes beyond the authenticated username. For additional attributes such as email, display name, or group memberships, pair the WCA connector with an Attribute Provider such as Active Directory.

​
Requirements

RequirementDetails
Operating systemWindows Server 2008 R2 or later
IISInternet Information Services with web server features enabled
.NET runtime.NET 7.0.13 Windows Server Hosting bundle (the installer will install the bundle for you if not already installed)
PermissionsAdministrator privileges on the Windows server

​
Installation

Follow these steps to install and configure the WCA on your IIS server:
1

Run the WCA installer

Run the WCA installer downloaded from your Maverics deployment. The installer creates an IIS application for the WCA.
2

Open IIS Manager

Open IIS Manager and navigate to the WCA application.
3

Configure authentication settings

Under the WCA application’s Authentication settings, enable both Anonymous Authentication and Windows Authentication.

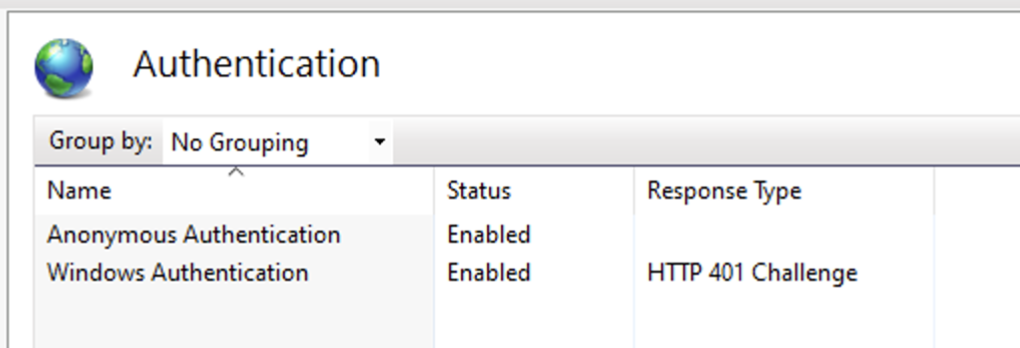

IIS Authentication settings showing Anonymous Authentication and Windows Authentication both enabled for the WCA application
WCA v2.x and later requires Anonymous Authentication to be enabled for the /status health endpoint.
4

Configure Windows Authentication providers

Under Windows Authentication > Providers, ensure NTLM is the only enabled provider.
Windows Authentication Providers dialog showing NTLM as the only enabled provider
5

Configure site bindings

Configure the IIS site bindings with HTTPS and the appropriate hostname for your environment. This hostname is the URL you will use in the Orchestrator connector configuration.

​
Upgrading from Previous Versions

When upgrading to WCA v2.x or later, Anonymous Authentication must be enabled in IIS. Previous versions of WCA had Anonymous Authentication disabled. This change is required for the /status health endpoint to function correctly.
IIS Authentication settings showing Anonymous Authentication enabled after upgrading to WCA v2.x

​
Status Endpoint

The WCA exposes a health endpoint at <hostname>/status that returns OK with HTTP 200 when the WCA application is running correctly. Use this endpoint for monitoring and health checks.

​
Configuration

In the Maverics Console, add a Windows Client Authenticator connector under Identity Fabric. Set the hostname URL to match your IIS site binding and optionally configure a TLS profile if the IIS server uses a self-signed or internal CA certificate.

​
Configuration with Maverics

After installing the WCA on your IIS server:
  1. Set a friendly name — The name field is the unique identifier for this connector, referenced by app policies and attribute providers.
  2. Set the URL — The url field must match the hostname binding you configured in IIS (e.g., https://wca.corp.example.com).
  3. Optionally set TLS — If the IIS server uses a self-signed or internal CA certificate, reference a named TLS profile with the tls field. The TLS profile should include the CA certificate via caFile.

​
Configuration Reference

KeyTypeRequiredDescription
namestringYesUnique connector identifier referenced by app policies and attribute providers
typestringYesMust be windowsclientauthenticator
urlstringYesURL of the WCA hostname binding on the IIS server (e.g., https://wca.corp.example.com)
tlsstringNoNamed TLS profile for communication with the WCA — use when the IIS server has a self-signed or internal CA certificate
For the complete connector field reference, see Identity Fabric Configuration Reference.

​
Testing

To verify the WCA is working correctly:
  1. Open a browser and navigate to the WCA URL (e.g., https://wca.corp.example.com).
  2. Enter your Windows credentials when prompted.
  3. The landing page displays the authenticated username, confirming that NTLM authentication is functioning.

​
NTLM Seamless Authentication

By default, browsers prompt users for credentials when accessing the WCA. You can configure browsers to pass Windows credentials automatically for a seamless single sign-on experience.

​
Edge and Chrome

Go to Internet Settings > Local Intranet > Advanced. Under “Add this website to the zone:”, add both the WCA site URL and the application URL.

​
Firefox

  1. Navigate to about:config in the Firefox address bar.
  2. Add both the WCA site URL and the application URL (comma-separated) to:
    • network.automatic-ntlm-auth.trusted-uris
    • network.negotiate-auth.delegation-uris
    • network.negotiate-auth.trusted-uris
  3. Set signon.autologin.proxy to true.

​
High Availability

WCA requires a Layer 4 (network) load balancer for high availability. Do not use a Layer 7 (application) load balancer — Layer 7 load balancers terminate and re-establish TCP connections, which breaks the multi-step NTLM authentication handshake. Use source IP / destination IP / port tuple affinity (sticky sessions based on client IP) to ensure all packets in an NTLM handshake reach the same backend IIS server.

​
Architecture

The high availability architecture follows this flow: Client Machines → App Load Balancer → Orchestrator(s) → Network Load Balancer (Layer 4) → IIS Server(s) with WCA
WCA high availability architecture showing client machines connecting through an application load balancer to Orchestrators, which connect through a Layer 4 network load balancer to multiple IIS servers running WCA
Using a Layer 7 load balancer in front of WCA servers will cause NTLM authentication failures. NTLM requires an unbroken TCP connection between the client (Orchestrator) and the server (WCA on IIS) across multiple request-response rounds. Layer 7 load balancers proxy at the HTTP level, breaking this connection continuity.

​
Troubleshooting

NTLM authentication requires an unbroken TCP connection across multiple request-response rounds. Layer 7 (application) load balancers terminate and re-establish connections, breaking the handshake.Fix: Replace the Layer 7 load balancer with a Layer 4 (network) load balancer. Configure source IP affinity to ensure all packets in a handshake reach the same backend server.
The /status endpoint requires Anonymous Authentication to be enabled in IIS. This is a common issue when upgrading from WCA versions prior to v2.x.Fix: In IIS Manager, navigate to the WCA application’s Authentication settings and enable Anonymous Authentication.
By default, browsers do not automatically send Windows credentials to intranet sites. Users will see a credential prompt on each access.Fix: Configure NTLM seamless authentication in the browser or via Group Policy. See the NTLM Seamless Authentication section above.
The WCA installer requires the .NET 7.0.13 Windows Server Hosting bundle. If the bundle is not present, the installer will install the bundle for you, but this may fail if there are network or permission issues.Fix: Manually download and install the .NET 7 Windows Server Hosting bundle before running the WCA installer.
